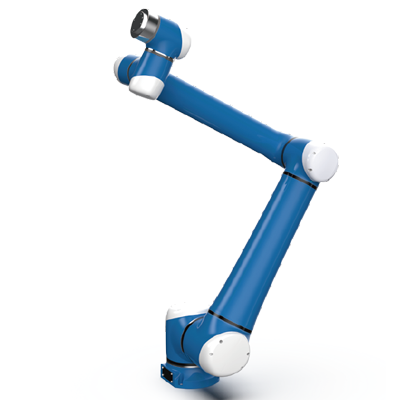

COBOT - CRP Collaborative Welding Robot
CRP-RC13-10
CHARACTERISTIC INTRODUCTION: 1. tool type convenient operation: Support drag, can quickly drag a large distance around the welding point; Uniquely designed end manipulator for fast programming without instruction:
① Use the rocker for 6 directions of subtle and rapid operation of the welding torch to the exact welding point;
② Record the position point, movement mode and welding instructions directly on the end operator;
③ Fast speed adjustment;
④ The display displays key information such as speed, pose, command,

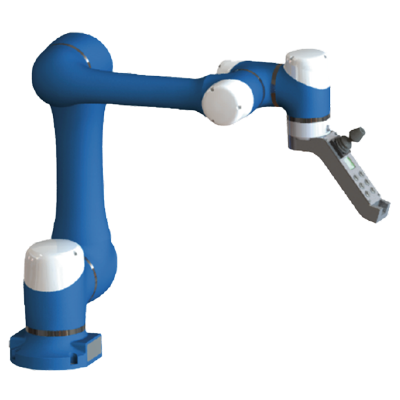

CRP-RC09-05
CHARACTERISTIC INTRODUCTION: 1. tool type convenient operation: •Support drag, can quickly drag a large distance around the welding point; •Uniquely designed end manipulator for fast programming without instruction:
① Use the rocker for 6 directions of subtle and rapid operation of the welding torch to the exact welding point;
② Record the position point, movement mode and welding instructions directly on the end operator;
③ Fast speed adjustment;
④ The display displays key information such as speed, pose, command,
Easy to operate
- Support drag, can be quickly dragged to a large distance around the welding point
- Uniquely designed end manipulator for fast programming without instruction:
- -1. Use the rocker to operate the welding torch in six directions to the exact welding point;
- -2. Record the position point, movement mode, welding instruction and swing instruction directly on the end operator;
- -3. Fast speed adjustment; Welding and swing parameter adjustment;
- -4. The display displays key information, such as speed, pose, command, welding and swing parameters;
- Welding gun can be quickly disassembled, only one screw can be quickly installed and disassembled,
easy to move the machine to a small space; - Optional magnetic base, can be installed on the workpiece;
Full featured
- Welding software package
- Swing function
- Multilayer multichannel function *
- Location finding function *
- Arc tracking function *
Major advantage
With UPS, support power
failure regeneration
Support gravity compensation,
tool load identification
Support collision detection,
stop immediately when hit,
man-machine collaboration
Dual encoder design,
more secure
Arc tracking function

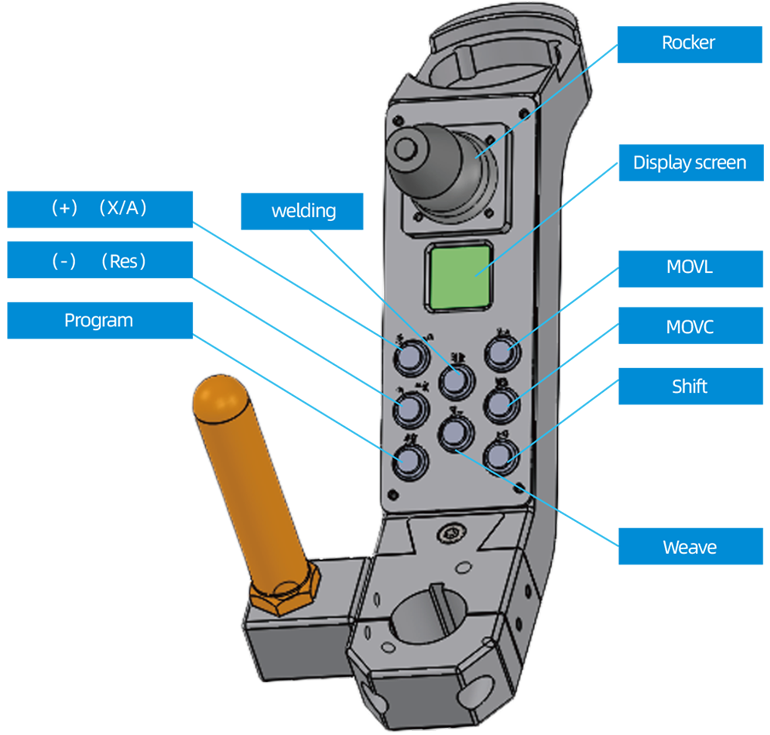

THE WORLD'S ORIGINAL TOWING DEVICE
Pull rod installation position is free, can be left and right hand, suitable for left and right hand operation
Rocker can be controlled, up and down, left and right, front and back (twisting), the speed (press the upper end)
The display displays: speed,XYZ/ABC action, welding and swing parameters
Function of 8 Buttons
Click to toggle ABC or XYZ action, and can also be used to add welding/swing parameters
Long press, the robot can be restored to the previous point of the attitude, to prevent the frontand rear gun attitude is not the same, and can be used to reduce welding/swing parameters
Click more than 2S to create a new program, and combine with the upper file to clear the
current program
Click to insert welding instructions
Click to insert the swing command
Click to insert a line movement
Click to insert an arc motion
Click to enable this function on the robot, and at the same time, clear the alarm and modify the previous bit
* In addition to the 8 buttons, the reasonable position is installed: pull button, program start button
Collaborative Robots for Global Manufacturers:
Mechtech Cobots are transforming modern manufacturing by offering advanced automation solutions that are safe, flexible, and highly efficient. Designed to meet the demanding needs of industries worldwide, these collaborative robots are setting new benchmarks in productivity, especially in welding applications. From cobot welding machines to fully integrated cobot welding systems, Mechtech provides next-generation automation tools that help global manufacturers achieve faster output, improved precision, and reduced operational costs. Whether you need a robotic TIG welding setup, an automatic TIG welding machine, or a hybrid hot wire TIG with cobot configuration, Mechtech ensures reliability and top-tier performance.
Key Benefits of Mechtech Cobots:
Mechtech Collaborative Robots are engineered to deliver consistent weld quality, easy programming, enhanced safety, and seamless integration with existing production lines. These cobots help manufacturers reduce downtime, overcome skilled labor shortages, and maintain uniform weld accuracy even in complex environments. Their versatility supports applications such as cobot welding, cobots for welding, cobot welding robots, and specialized systems like cobot with plasma welding, cobot with laser welding, and sheet metal welding cobots. With compact designs and intelligent controls, Mechtech Cobots ensure maximum efficiency without compromising workspace safety.
Mechtech Collaborative Welding Robot:
The Mechtech Collaborative Welding Robot is a powerful solution for businesses looking to automate repetitive or precision-based welding tasks. This collaborative welding robot is ideal for MIG, TIG, plasma, laser, and sheet metal welding applications. As a highly adaptable collaborative robot welder, it ensures stable arc control, high accuracy, and consistent deposition rates, making it suitable for small to large production batches. With quick setup, user-friendly interfaces, and compatibility with multiple welding technologies, Mechtech provides a complete cobot welding solution tailored to industry needs.
What Defines the Right Collaborative Robot for Your Application:
Choosing the right collaborative robot depends on factors such as welding process type, material thickness, production volume, workspace layout, and safety requirements. The ideal cobot should support multi-process capabilities like TIG, MIG, plasma, and laser welding while offering seamless integration into existing workflows. Mechtech Cobots excel in all these areas—delivering strong payload capacity, precise motion control, and unmatched reliability. Whether the requirement involves a heavy-duty cobot welding robot or a compact sheet metal welding cobot, Mechtech ensures every solution aligns with your business goals.
Collaborative Robot Applications:
Mechtech Cobots play a vital role in diverse industrial applications ranging from fabrication and automotive to heavy machinery and metal processing. Key applications include cobot welding, robotic TIG welding, plasma & laser welding automation, sheet metal welding, repetitive part welding, and multi-material joining tasks. Their human-friendly design allows operators and robots to work side-by-side safely, increasing throughput while maintaining weld integrity.
Why Mechtech Cobots Are the Right Choice for Your Business:
Mechtech offers industry-leading cobot technology backed by proven performance, high precision, and dependable after-sales support. Businesses choose Mechtech Cobots because they deliver consistent output, reduce human error, and dramatically cut production time. With flexible setups such as cobot welding machines, fully integrated cobot welding systems, and customizable cobot welding solutions, Mechtech empowers manufacturers with future-ready automation. For companies seeking a powerful, user-friendly collaborative robot welder or a professionally engineered collaborative welding robot, Mechtech remains the trusted partner for long-term success.
